There are many lines and pipes in the IDC room. Whether it is a fire protection system pipe or a water pipe, we are not sure whether they have hidden dangers and whether they will leak. Once a water leakage accident occurs, it may cause a short circuit in the computer room, and may also cause a fire. In order to avoid the property damage of the computer room caused, it is necessary to monitor the water leakage in the IDC computer room.

To customize the water leakage monitoring system of the IDC computer room, first of all, we need to analyze the main areas where water leakage occurs?

  1. Working area: main computer room, auxiliary workshop, power distribution room, generator room, etc;

  2. Living area: toilet, stairs, etc.

What water leakage monitoring equipment is generally used for water leakage monitoring in IDC room?

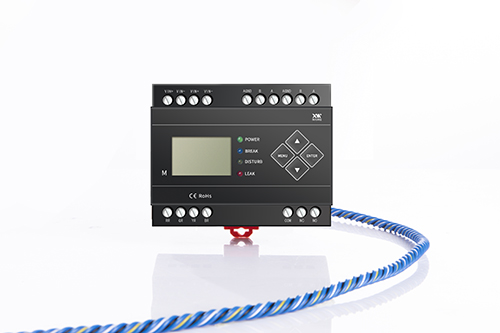

 1. XW-PC-3A-PRO Locating Leak Detection Alarm Units

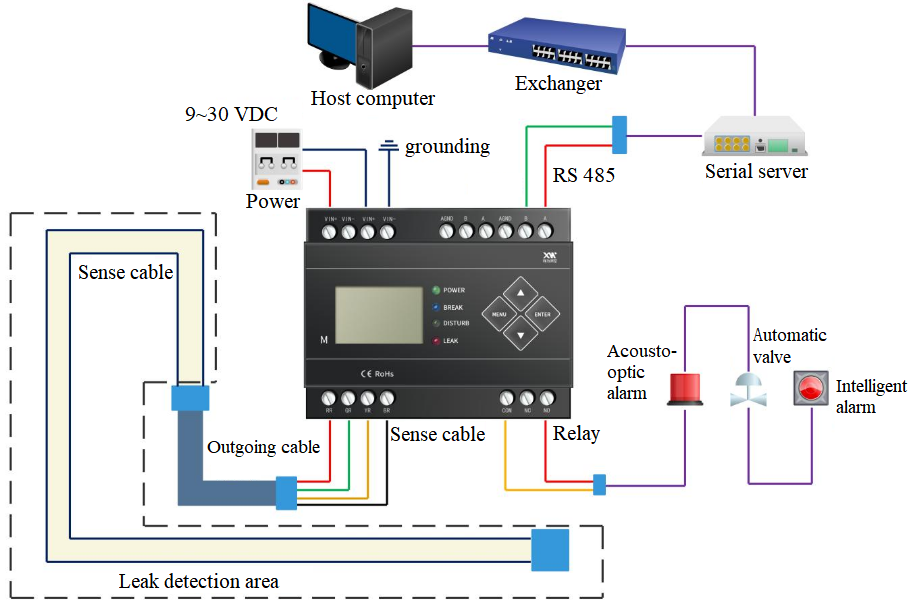

This Locating leak detection alarm detector can connect with sense cables and monitor the leak detection area up to 1500 meters. Once the liquid is detected, the detector will alarm, display the leak position and trigger the relay. XW-PC-3A-PRO Locating Leak Detection Alarm Detector adopts MODBUS-RTU (ASCII) communication protocol. Through its output relay contact signal and RS485 interface, it can be integrated with various monitoring systems to realize remote alarm and remote equipment control.

This product is suitable for data centers, IDC computer rooms, libraries, museums, warehouses and other places where liquid leakage needs to be monitored. XW-PC-3A-Pro is a high-performance liquid leakage detection equipment, which is compatible with detection cables for liquid leakage such as water, acid and alkali, gasoline and diesel.

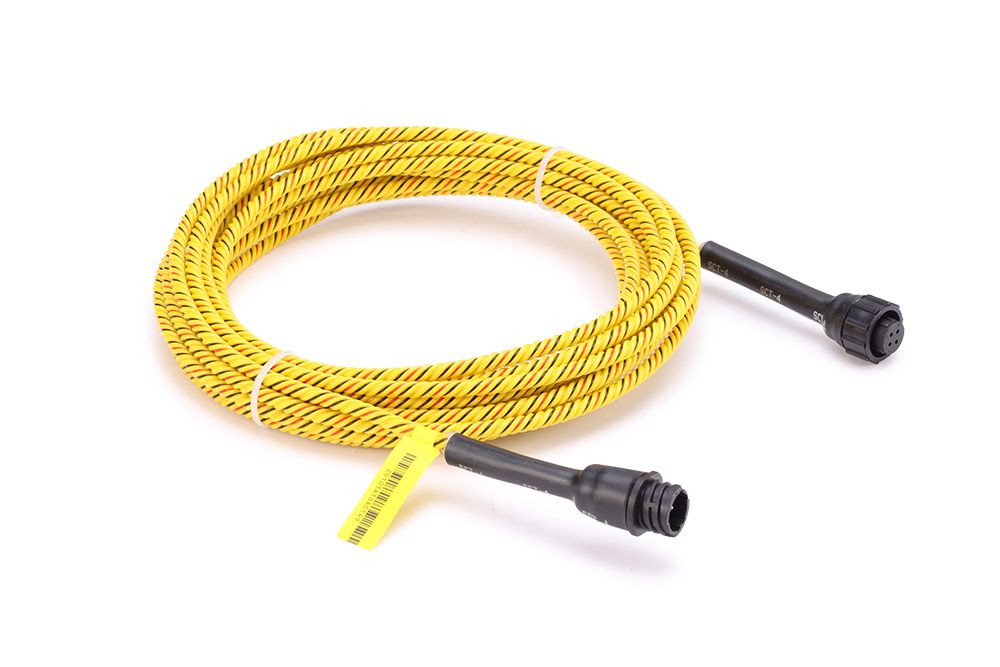

  2. XW1000 Locating Water Sense Cable

This locating water sense cable can detect leaking points anywhere on the cable. Can be installed with the XW water leak detector. XW1000 Locating Water Sensor Cable adopts conductive polymerization technology and fluoropolymer material, which makes it have strong mechanical properties and corrosion resistance and wear resistance. The cable's spiral construction ensures that no metal is exposed and can even be used repeatedly in corrosive environments.

With the function of distributed leak detection and location, XW1000 Locating Water Sense Cable can be widely used in various fields. A variety of length specifications are available to meet the needs of various detection ranges. The resistance of the cable is uniform, and the error is within 0.5%. For the leak detection system with resistance as an important parameter, it has high stability and high accuracy of detection and positioning.

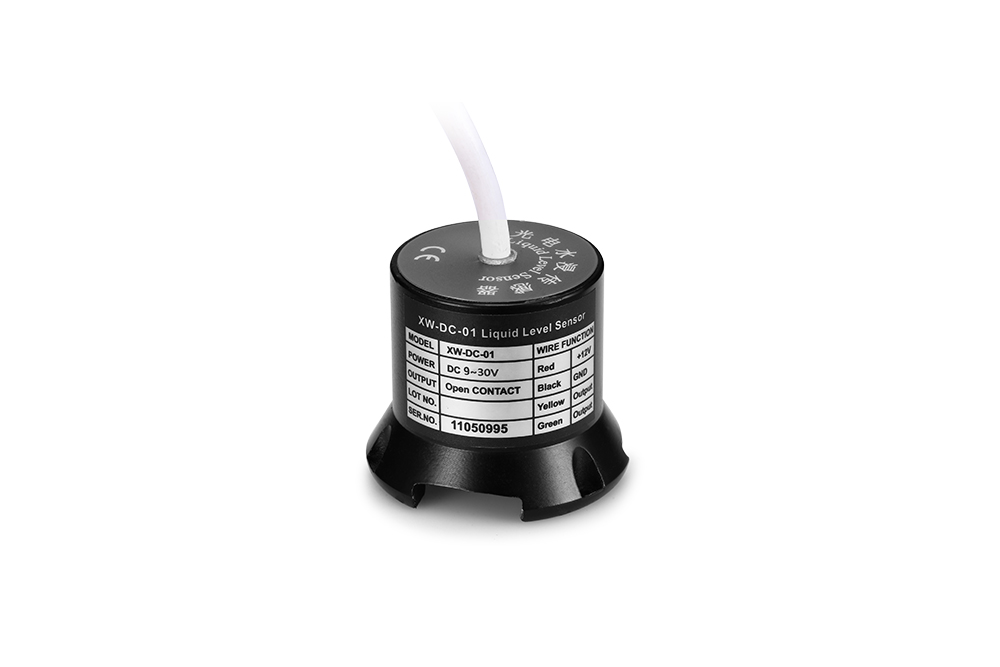

3. In addition, there is point water leakage detection

The point type water leakage detection is mainly suitable for micro computer rooms, because most micro computer rooms integrate power distribution refrigeration, equipment cabinet, cold/hot channel, cable tray and other equipment together. Living areas will be far away, and it is a more efficient way to implement point type water leak detection.
