Product OverviewXW1100A Flat water sense cable is flat design with small volume and high flexibility. It can be connected with most of the leak alarm host and form a leak detection system with high detection sensitivity, rapid and reliable response. The sense cable consists of two light high-density polyethylene wires tightly embedded in the parallel structure framework, which has strong corrosion resistance and wear resistance.
Application & Features
IDC
Data Centre
Library
Museum
Warehouse
FeaturesParallel structure design can not only reduce cable volume, but also reduce environmental electromagnetic interference and false alarm rate.
Two core wires design based on the principle of short circuit which can be used with Xiangwei non-locating leak detectors as well as other brands.(Zone type leak detection system)
Flat structure make the cable thickness to be very small, which can save vertical space. Sense cable and the required accessories are packaged to greatly enhance its waterproof performance. When installing, only need to lay sense cable along the monitoring area.
Flexible for installation in complex and bending pipelines
Technical Data
|
Cable Size |
7.0mm*2.0mm |
|
External resistance of cable conductor |
≤0.2Ω/m |
|
Cable weight |
28g/m±2 g/m |
|
Cable color(Central axis) |
Yellow |
|
Material(Central axis) |
PVC |
|
Operating temperature |
-20℃~80℃ |
|
Fire resistance |
V0 |
Product Selection
|
Part number |
Description |
|
XW1100A-3m |
3 meter non-locating leak sense cable |
|
XW1100A-5m |
5 meter non-locating leak sense cable |
|
XW1100A-10m |
10 meter non-locating leak sense cable |
|
Note: Length can be customized according to the requirements |
|
Operation Principle
When the liquid contact with the sense cable, the inner core wires of two sense wires are conductive in contact with liquid, forming a circuit, leak detector detects the leakage, send an alarm signal.

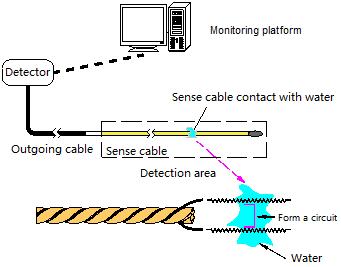

FIG. 1 Schematic diagram of operation principle
