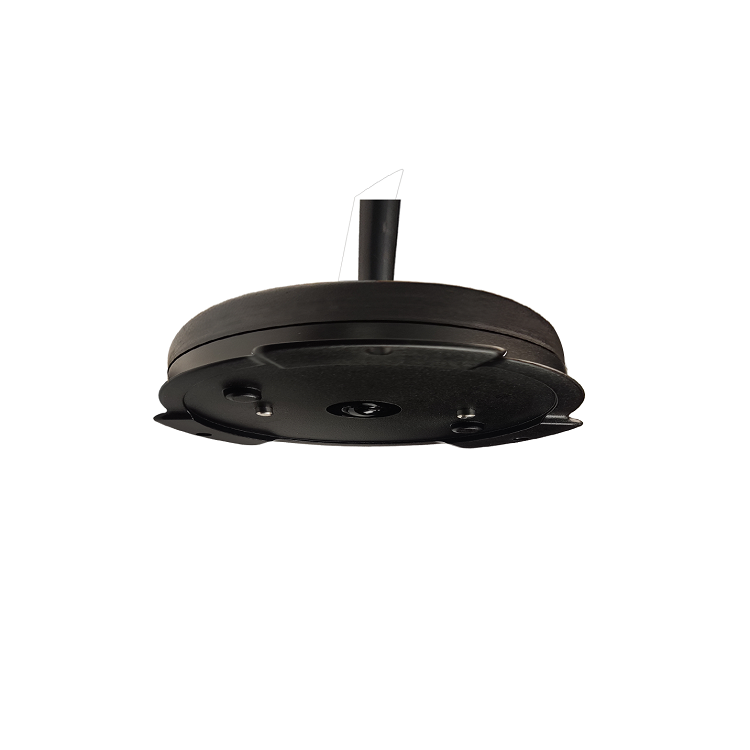

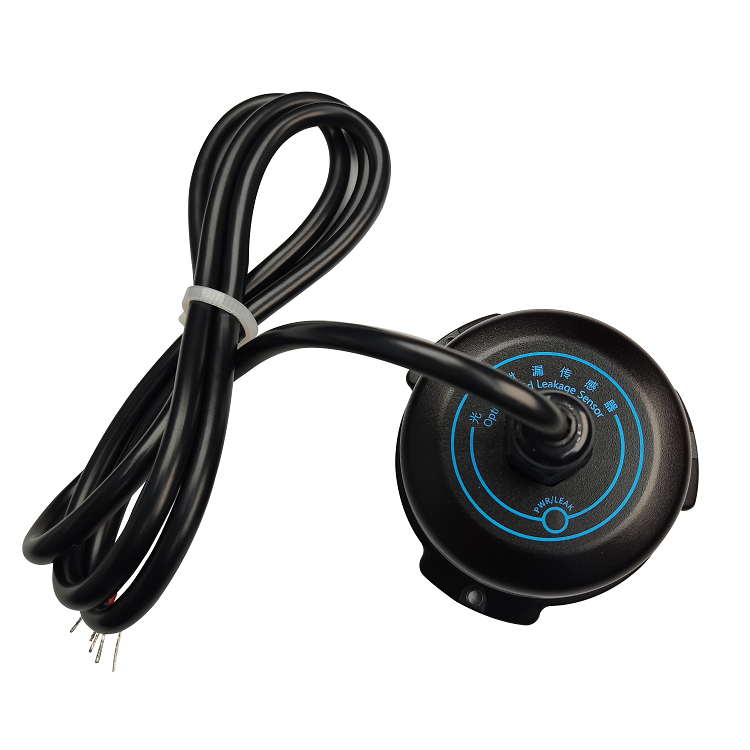

Product OverviewXW-DC-01A Optoelectronic Liquid Leak Sensor adopts optoelectronic detection and electrode detection principle. The structure is fully sealed design, the housing is made of plastic, and the inner circuit is sealed with glue. It can achieve the function of explosion-proof, dust-proof and water-proof. The electronic components are little affected by environmental factors, so as to ensure the high precision and reliability of products. It has the characteristics of high sensitivity, fast response time, convenient use and easy installation. The 485 signal output by the sensor can be integrated with various monitoring systems to realize remote monitoring.
Application & Features
Generator room
Intelligent Building
IDC room
Communication stations
Warehouse
FeaturesWith three screw fixing positioning holes, it's firm and reliable for installation.
Using industrial-grade electronic components can not only ensure high sensitivity, but also reduce false alarms caused by various external factors.
Adopt electromagnetic compatibility design, with anti-surge, anti-static, anti-EFT and other protection functions.

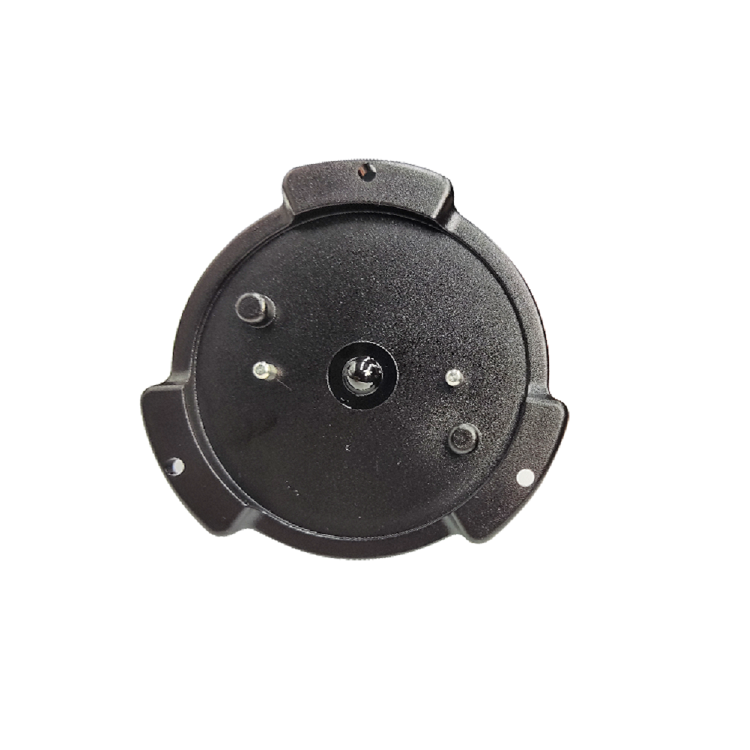

Adopts optoelectronic and electrode detection principles, which can detect the leakage of conductive liquid and non-conductive liquid at the same time, and can reliably distinguish the type of leakage liquid.
With status indicator of normal and leakage alarm, green light is always on in the normal state, and red light is always on in the leakage alarm state.
Sensor can output RS485 signal to the monitoring platform, report real-time data, and the communication distance can reach 1200m.
Technical Data
|
Environmental rating |
OperatingTemperature |
-40℃~70℃ |
|
Operating humidity |
0~95%RH(No condensation) |
|
|
Power supply |
Supply voltage |
DC 9~30V(recommend 12V DC) |
|
Power Consumption |
≤1W |
|
|
RS485 interface |
Communication protocol |
MODBUS-RTU |
|
Bus address |
1~254(default 1) |
|
|
Baud rate |
1200, 2400, 4800, 9600(default), 19200bps |
|
|
Data format |
N,8,1 |
|
|
EMC protection grade |
ESD |
Contact discharge±8KV, Air discharge±15KV |
|
Surge |
±4KV |
|
|
EFT |
±4KV |
|
|
Protection level |
IP68 |
|
|
Weight |
91.1g |
|

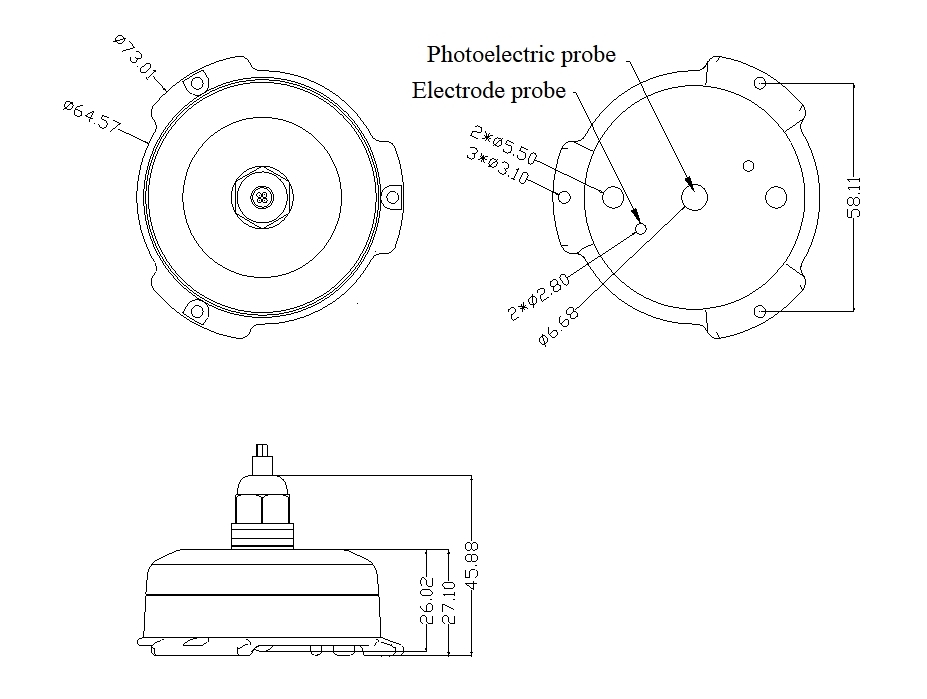

Product Size
(Unit: mm, error ±0.5mm)
Operation Principle

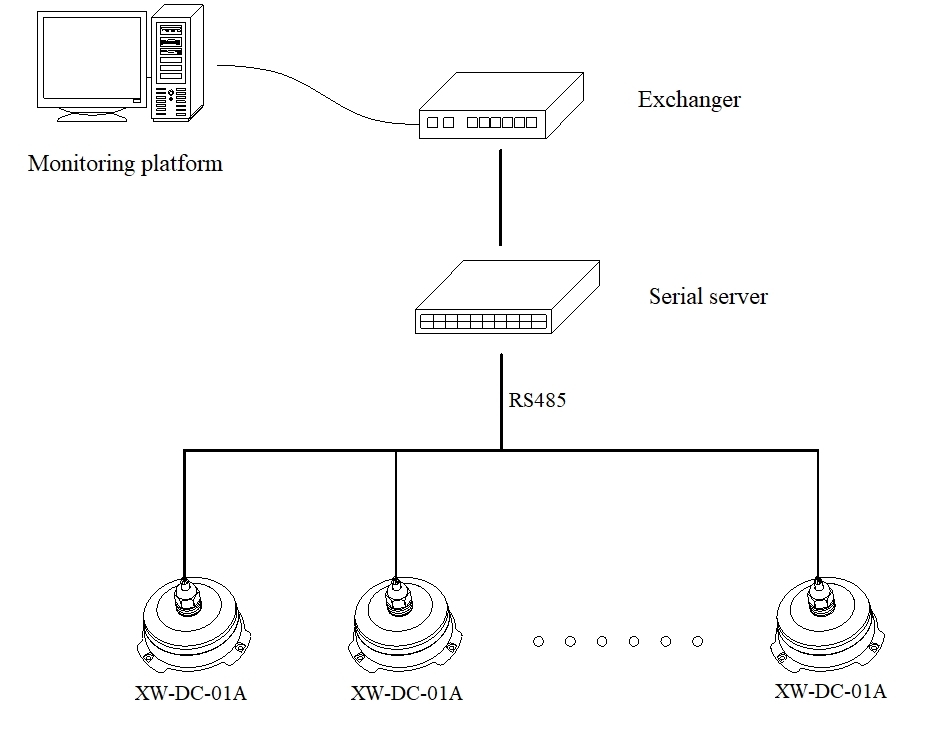

XW-DC-01A Optoelectronic Liquid Leak Sensor is installed in the liquid leakage monitoring area. When liquid leakage is detected, the leakage data is uploaded to the monitoring platform through RS485 signal to realize real-time centralized monitoring.
